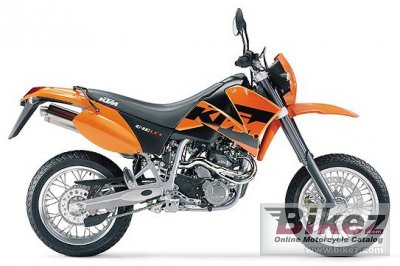

KTM 640 LC4 SM Supermoto 20042004 KTM 640 LC4 SM Supermoto specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| Originally developed for racing, the 640 LC4 Supermoto now stands for quality in everyday use. |
| General information | |
|---|---|
| Motorcycle name | KTM 640 LC4 SM Supermoto |
| Year | 2004 |
| Category | Super motard |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 625.0 ccm (38.14 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 53.6 HP (39.2 kW)) @ 7000 RPM |
| Torque | 55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 5500 RPM |
| Compression | 11.7:1 |
| Bore x stroke | 101.0 x 78.0 mm (4.0 x 3.1 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-molybdenum, power-coated |
| Trail | 63 mm (2.5 inches) |
| Front suspension | WP-USD 48 MA |
| Rear suspension | WP - Monoshock |
| Front tire | 120/70-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 149.0 kg (328.5 pounds) |
| Power/weight ratio | 0.3600 HP/kg |
| Seat height | 910 mm (35.8 inches) If adjustable, lowest setting. |
| Alternate seat height | 675 mm (26.6 inches) If adjustable, highest setting. |
| Overall height | 640 mm (25.2 inches) |
| Overall width | 640 mm (25.2 inches) |
| Ground clearance | 290 mm (11.4 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Color options | Orange, Black |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 KTM 640 LC4 SM Supermoto discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Sell or buy used bikes?
Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2004 KTM 640 LC4 SM Supermoto or advertise any other MC for sale. You can list all 2004 KTM 640 LC4 SM Supermoto available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc.| Rating sample for this KTM bike | |
Reliability for the 2004 KTM 640 LC4 SM Supermoto:  (72.8 out of 100)Click here for complete rating. |
|
