| KTM's profilation of this bike |
| Can you have everything? Why not! Unlimited day-to-day rideability; high quality WP suspension and any amount of performance that comes pouring out of the legendary LC4 powerhouse. For years now the 640 LC4 Enduro has been the yardstick by which all other all-round Enduros |
|
General information |
|
Motorcycle name
|

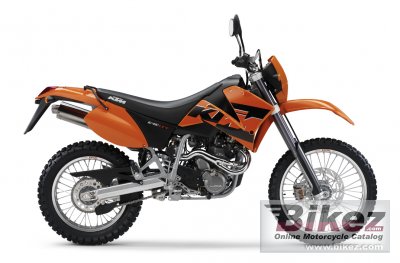

KTM 640 LC4 Enduro |
|
Year model
|
2006 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
625.0 ccm (38.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
11.7:1 |
|
Bore x stroke
|
101.0 x 78.0 mm (4.0 x 3.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni BST 40 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan DC-CDI |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Stainless steel |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25 CrMo4 |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
112 mm (4.4 inches) |
|
Front suspension
|
WP-USD 43 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Monoshock with Pro Lever |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
148.0 kg (326.3 pounds) |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Overall width
|
640 mm (25.2 inches) |
|
Ground clearance
|
300 mm (11.8 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
11.20 litres (2.96 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Comments
|
Not available in the USA. |
