| KTM's profilation of this bike |
| It was with this bike that many years ago KTM first coined the phrase ´Hard Enduro´. And after almost exactly as many years development, the 640 LC4 in its current form is still the embodiment of sporty all-rounders: powerful but cultivated, razor-sharp but reliable, and always there for one or two quick curves.
|
| General information |
|---|

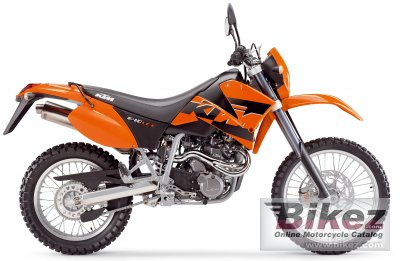

| Model: | KTM 640 LC4 Enduro |
| Year: | 2005 |
| Category: | Cross / motocross |
| Rating: | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 625.0 ccm (38.14 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 11.7:1 |
| Bore x stroke: | 101.0 x 78.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. Mikuni BST 40 |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | Kokusan DC-CDI |
| Lubrication system: | Pressure lubrication with 2 Eaton pumps |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chromium-molybdenum, powder-coated |
| Rake (fork angle): | 28.0° |
| Trail: | 128 mm (5.0 inches) |
| Front suspension: | WP-USD 43 mm (1.89 inches) |
| Rear suspension: | WP Monoshock |
| Rear wheel travel: | 335 mm (13.2 inches) |
| Front tire: | 90/90-21 |
| Front brakes: | Single disc |
| Diameter: | 216 mm (8.5 inches) |
| Rear brakes: | Single disc |
| Diameter: | 260 mm (10.2 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 148.0 kg (326.3 pounds) |
| Seat height: | 910 mm (35.8 inches) If adjustable, lowest setting. |
| Overall height: | 640 mm (25.2 inches) |
| Overall width: | 640 mm (25.2 inches) |
| Ground clearance: | 300 mm (11.8 inches) |
| Wheelbase: | 1510 mm (59.4 inches) |
| Fuel capacity: | 11.20 litres (2.96 US gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Comments: | Not available in the USA. |
