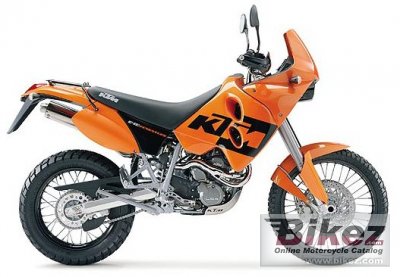

KTM 640 LC4 Adventure 20042004 KTM 640 LC4 Adventure specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| Adventure everywhere: on Alpine roads, gravel runs, or sand dunes, at the weekend, or on long trips. The series version of Richard Sainct´s current Dakar Rally-winning bike. 30 litre tank, frameattached fairing, trip master cockpit. Characterised by the low Rally fender in front and the new front double disk brake. |
| General information | |
|---|---|
| Model name | KTM 640 LC4 Adventure |
| Year | 2004 |
| Category | Enduro / offroad |
| Rating | 4.1 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 625.0 ccm (38.14 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 53.6 HP (39.2 kW)) @ 7000 RPM |
| Torque | 55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 5500 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 101.0 x 78.0 mm (4.0 x 3.1 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | chromium-molybdenum, power-coated |
| Front suspension | WP-USD 48 MA |
| Rear suspension | WP - Monoshock |
| Front tire | 90/90-21 |
| Front brakes | Double disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 158.0 kg (348.3 pounds) |
| Power/weight ratio | 0.3395 HP/kg |
| Seat height | 945 mm (37.2 inches) If adjustable, lowest setting. |
| Alternate seat height | 675 mm (26.6 inches) If adjustable, highest setting. |
| Overall height | 640 mm (25.2 inches) |
| Overall width | 640 mm (25.2 inches) |
| Ground clearance | 315 mm (12.4 inches) |
| Wheelbase | 1510 mm (59.4 inches) |
| Fuel capacity | 28.00 litres (7.40 US gallons) |
| Other specifications | |
| Comments | Not available in the US. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 KTM 640 LC4 Adventure discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2004 KTM 640 LC4 Adventure discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this KTM bike | |
Value for money for the 2004 KTM 640 LC4 Adventure:  (79.8 out of 100)Click here for complete rating. |
|
