| KTM's profilation of this bike |
| The classic fun bike. Razor-sharp appearance, original design, light, aluminium cast wheels and even better performance, thanks to a new intake tract. |
|
General information |
|
Motorcycle name
|

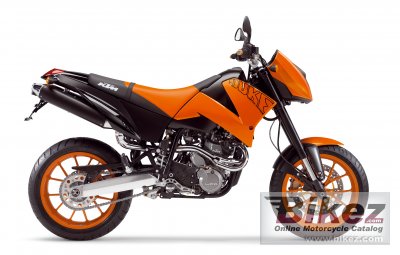

KTM 640 Duke II Limited Edition |
|
Year of manufacture
|
2006 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
625.0 ccm (38.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
53.6 HP (39.2 kW)) @ 6750 RPM |
|
Torque
|
60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5500 RPM |
|
Compression
|
11.7:1 |
|
Bore x stroke
|
100.0 x 72.0 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Mikuni BST 40 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan DC-CDI |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminum |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-molybdenum, powder-coated |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
WP-USD 43 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP - Monoshock |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
160/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
152.0 kg (335.1 pounds) |
|
Power/weight ratio
|
0.3529 HP/kg |
|
Seat height
|
900 mm (35.4 inches) If adjustable, lowest setting. |
|
Overall width
|
640 mm (25.2 inches) |
|
Ground clearance
|
280 mm (11.0 inches) |
|
Wheelbase
|
1460 mm (57.5 inches) |
|
Fuel capacity
|
11.20 litres (2.96 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
