| KTM's profilation of this bike |
| Can you have everything¿ Why not! Unlimited day-to-day rideability; high quality WP suspension and any amount of performance that comes pouring out of the legendary LC4 powerhouse. For years now the 640 LC4 Enduro has been the yardstick by which all other all-round Enduros |
| General information |
|---|

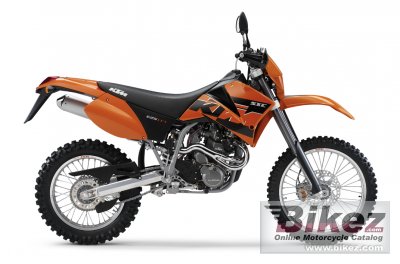

| Model: | KTM 625 SXC |
| Year: | 2006 |
| Category: | Enduro / offroad |
| Rating: | 66.6 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 625.00 ccm (38.14 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 11.7:1 |
| Bore x stroke: | 101.0 x 78.0 mm (4.0 x 3.1 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. Keihin MX FCR 41 |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | Kokusan DC-CDI |
| Lubrication system: | Pressure lubrication with 2 Eaton pumps |
| Cooling system: | Liquid |
| Gearbox: | 5-speed |
| Clutch: | Wet multi-disc clutch, operated hydraulically |
| Exhaust system: | Aluminum |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central double-cradle-type 25 CrMo4 |
| Rake (fork angle): | 27.5° |
| Trail: | 112 mm (4.4 inches) |
| Front suspension: | WP-USD 43 mm (1.89 inches) |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP Monoshock with Pro Lever |
| Rear wheel travel: | 335 mm (13.2 inches) |
| Front tyre: | 90/90-21 |
| Rear tyre: | 140/80-18 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 139.0 kg (306.4 pounds) |
| Seat height: | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Overall width: | 625 mm (24.6 inches) |
| Ground clearance: | 330 mm (13.0 inches) |
| Wheelbase: | 1,510 mm (59.4 inches) |
| Fuel capacity: | 9.20 litres (2.43 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Comments: | Not available in the USA. |
