| KTM's profilation of this bike |
| This little sister to the 640 Supermoto is damned sporty drifting into the corners. The smaller tank, the lean seat and the very sharp Keihin flat slide carburettor ensures a real race feeling. Also, with this one, you don’t have to miss out on the E-Starter. |
|
General information |
|
Model name
|

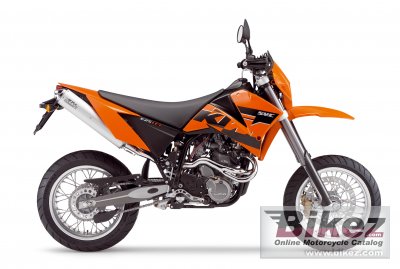

KTM 625 SMC |
|
Model year
|
2006 |
|
Category
|
Super motard |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
625.0 ccm (38.14 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
28.2 HP (20.6 kW)) @ 6000 RPM |
|
Torque
|
41.0 Nm (4.2 kgf-m or 30.2 ft.lbs) @ 3250 RPM |
|
Compression
|
11.7:1 |
|
Bore x stroke
|
101.0 x 78.0 mm (4.0 x 3.1 inches) |
|
Fuel system
|
Carburettor. Mikuni BST 40 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan DC-CDI |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-disc wet clutch, hydraulically operated |
|
Exhaust system
|
Aluminium double silencer |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-molybdenum, powder-coated |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
99 mm (3.9 inches) |
|
Front suspension
|
WP-USD 48 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP - Monoshock |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
120/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
146.0 kg (321.9 pounds) |
|
Power/weight ratio
|
0.1929 HP/kg |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Overall width
|
625 mm (24.6 inches) |
|
Ground clearance
|
280 mm (11.0 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
9.20 litres (2.43 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Comments
|
Not available in the US. |
