KTM's profilation of this bike |
Race trim, competition oriented chassis set up, aluminum silencer, the 625cc engine from the legendary Supercompetition in combination with every day usable comfort of an e-starter.
|
General information |

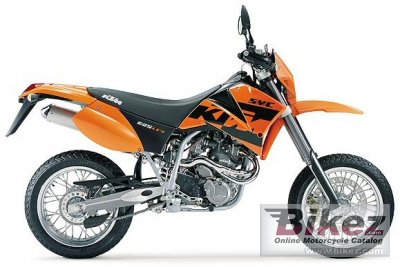

Model name
|
KTM 625 SMC |
Year model
|
2004 |
Type
|
Super motard |
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
625.0 ccm (38.14 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Effect
|
32.2 HP (23.5 kW)) @ 6000 RPM |
Torque
|
45.0 Nm (4.6 kgf-m or 33.2 ft.lbs) @ 3500 RPM |
Compression
|
11.7:1 |
Bore x stroke
|
101.0 x 78.0 mm (4.0 x 3.1 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Overhead Cams (OHC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
chromium-molybdenum, power-coated |
Trail
|
63 mm (2.5 inches) |
Front suspension
|
WP-USD 48 MA |
Rear suspension
|
WP - Monoshock |
Front tire
|
120/70-17 |
Front brakes
|
Single disc |
Diameter
|
320 mm (12.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
132.0 kg (291.0 pounds) |
Power/weight ratio
|
0.2438 HP/kg |
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
Alternate seat height
|
675 mm (26.6 inches) If adjustable, highest setting. |
Overall height
|
625 mm (24.6 inches) |
Overall width
|
625 mm (24.6 inches) |
Ground clearance
|
290 mm (11.4 inches) |
Wheelbase
|
1510 mm (59.4 inches) |
Fuel capacity
|
9.00 litres (2.38 US gallons) |
Other specifications |
Color options
|
Orange |
Update specs | Report missing specs or required updates. |
