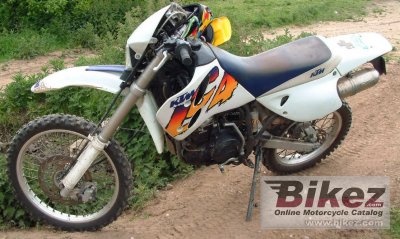

KTM 620 EGS 19981998 KTM 620 EGS specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | KTM 620 EGS |
| Model year | 1998 |
| Category | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 609.0 ccm (37.16 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 50.0 HP (36.5 kW)) @ 7250 RPM |
| Torque | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 5500 RPM |
| Top speed | 155.0 km/h (96.3 mph) |
| Compression | 10.4:1 |
| Bore x stroke | 101.0 x 76.0 mm (4.0 x 3.0 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Dell´Orto PHM 40 SD |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | KDC-CDI |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | WP Telescopic forks, compression and rebound adjustable |
| Rear suspension | Single chock, preload, compression and rebound adjustable |
| Front tire | 90/90-21 |
| Rear tire | 130/80-18 |
| Front brakes | Single disc. Four-piston calipers. |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Single-piston caliper. |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 131.0 kg (288.8 pounds) |
| Weight incl. oil, gas, etc | 139.0 kg (306.4 pounds) |
| Power/weight ratio | 0.3817 HP/kg |
| Seat height | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Fuel capacity | 11.00 litres (2.91 US gallons) |
| Oil capacity | 2.10 litres (2.22 US quarts) |
| Other specifications | |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | 15W-50 |
| Brake fluid | DOT 5.1 |
| Coolant | 1.00 litres (0.26 US gallons) |
| Spark plugs | NGK D8EA, NGK DR8EIX |
| Chain links | 110 |
| Sprockets | 16/44 (front/rear) |
| Tire pressure front | 36 PSI (2.5 Bar or 250 kPa) |
| Tire pressure rear | 36 PSI (2.5 Bar or 250 kPa) |
| Fork tube size | 40 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 98 KTM 620 EGS discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 1998 KTM 620 EGS for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Value for money for the 1998 KTM 620 EGS:  (83.9 out of 100)Click here for complete rating. |
|
