| KTM's profilation of this bike |
| Ready to Race in the S1 category, thanks to its super-agile handling and miniumal weight. Lots of torque and plenty of power, which is passed to the asphalt via the specially tuned, 6-gear transmission and 165 slicks. |
|
General information |
|
Model name
|

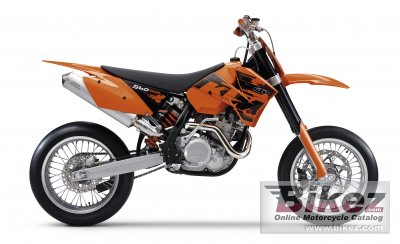

KTM 560 SMR |
|
Model year
|
2007 |
|
Category
|
Super motard |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
565.5 ccm (34.51 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
100.0 x 72.0 mm (3.9 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin MX FCR 41 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan digital 4K-3A |
|
Lubrication system
|
Pressure lubrication with 2 eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double ground, chrommoly-steel frame, powder-coated |
|
Front suspension
|
WP USD Ø 48 mm (1.89´) |
|
Front wheel travel
|
285 mm (11.2 inches) |
|
Rear suspension
|
WP monoshock PDS |
|
Rear wheel travel
|
310 mm (12.2 inches) |
|
Front tire
|
120/75-17 |
|
Rear tire
|
165/55-17 |
|
Front brakes
|
Single disc. Magura 4-piston, radially fixed caliper, brake disc Ø 310 mm (12.20´) |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Brembo single-piston floating caliper, brake disc Ø 220 mm |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
109.5 kg (241.4 pounds) |
|
Seat height
|
855 mm (33.7 inches) If adjustable, lowest setting. |
|
Ground clearance
|
310 mm (12.2 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
