| KTM's profilation of this bike |
| Ready to Race in the S1 category, thanks to its super-agile handling and miniumal weight. Lots of torque and plenty of power, which is passed to the asphalt via the specially tuned, 6-gear transmission and 165 slicks. |
|
General information |
|
Model name
|

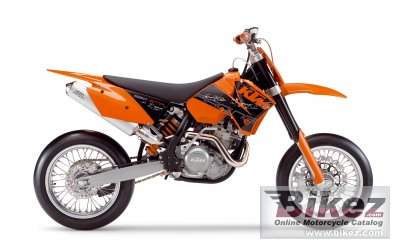

KTM 560 SMR |
|
Year of manufacture
|
2006 |
|
Type
|
Super motard |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
565.5 ccm (34.51 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Torque
|
42.5 Nm (4.3 kgf-m or 31.3 ft.lbs) @ 3250 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
100.0 x 72.0 mm (3.9 x 2.8 inches) |
|
Fuel system
|
Carburettor. Mikuni BST 40 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan digital 4K-3A |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-disc wet clutch, hydraulically operated |
|
Exhaust system
|
Aluminum |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double ground, chrome-moly-steel frame, powder-coated |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
90 mm (3.5 inches) |
|
Front suspension
|
WP-USD 48 mm (1.89 inches) |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS Monoshock |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
120/75-17 |
|
Rear tire
|
165/55-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
109.5 kg (241.4 pounds) |
|
Seat height
|
855 mm (33.7 inches) If adjustable, lowest setting. |
|
Overall width
|
560 mm (22.0 inches) |
|
Ground clearance
|
310 mm (12.2 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
