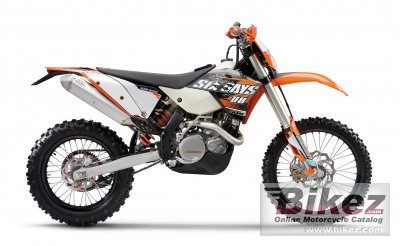

| KTM's profilation of this bike |
| Those who feel the 530 EXC beneath them know what to expect: the ultimate combination of fighting machine and workhorse. The large SOHC engine develops brutal four-stroke power and also convinces with smooth power delivery on selective trails. In combination with the completely overhauled chassis, the new 530 EXC is the first choice for everyone who simply can’t get enough. |
|
General information |
|
Model
|
KTM 530 EXC SixDays |
|
Year
|
2009 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
510.4 ccm (31.14 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
11.9:1 |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin MX FCR 39 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan |
|
Lubrication system
|
Pressure lubrication with 3 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4. Aluminium subframe. |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP USD, 48 mm |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP monoshock PDS |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
113.9 kg (251.1 pounds) |
|
Seat height
|
985 mm (38.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
|
Starter
|
Electric & kick |
