| KTM's profilation of this bike |
| For those who simply can´t get enough, the new 530 EXC is heading to the start line this year with a completely overhauled chassis. An insatiable fighting machine that is unfazed by even the toughest Enduro challenges on the one hand, and a complete workhorse that undeviatingly pursues its course – strong and reliably, on the other. |
|
General information |
|
Model name
|

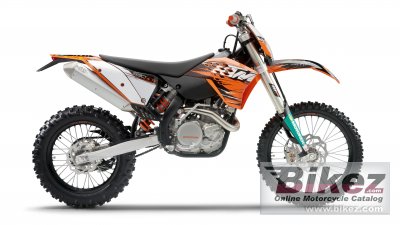

KTM 530 EXC |
|
Year
|
2010 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
510.4 ccm (31.14 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
11.9:1 |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin FCR MX 39 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Kokusan digital |
|
Lubrication system
|
Pressure lubrication with 3 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4 steel |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP USD fork |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP PDS shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
113.9 kg (251.1 pounds) |
|
Seat height
|
985 mm (38.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black/gray |
|
Starter
|
Electric & kick |
|
Comments
|
KTM´s Offroad Competition ECX model series. |
