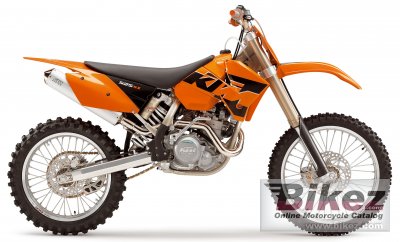

KTM 525 SX Racing 20052005 KTM 525 SX Racing specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| It´s somehow a good feeling not to have any real competition: with its outstanding performance, the 525 SX takes the competition apart at will in the open class. The perfect bike for the very courageous and for those who love power above all. |
| General information | |
|---|---|
| Model | KTM 525 SX Racing |
| Year of manufacture | 2005 |
| Type | Cross / motocross |
| Rating | 3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 510.4 ccm (31.14 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 11.0:1 |
| Bore x stroke | 95.0 x 72.0 mm (3.7 x 2.8 inches) |
| Fuel system | Carburettor. Keihin MX FCR 41 |
| Ignition | Kokusan digital 4K-3A |
| Lubrication system | Pressure lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium molybdenum |
| Rake (fork angle) | 26.5° |
| Trail | 112 mm (4.4 inches) |
| Front suspension | WP-USD 48 mm (1.89´) |
| Rear suspension | WP-PDS shock absorber |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front brakes | Single disc |
| Diameter | 216 mm (8.5 inches) |
| Rear brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 106.0 kg (233.7 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Overall height | 525 mm (20.7 inches) |
| Overall width | 525 mm (20.7 inches) |
| Ground clearance | 380 mm (15.0 inches) |
| Wheelbase | 1481 mm (58.3 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Other specifications | |
| Starter | Kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 KTM 525 SX Racing discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2005 KTM 525 SX Racing for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Fun-factor for the 2005 KTM 525 SX Racing:  (73.5 out of 100)Click here for complete rating. |
|
