| KTM's profilation of this bike |
| Strictly competition oriented Sportmotorcycles for the first time available in 2004 in limited quantities.
|
|
General information |
|
Model
|

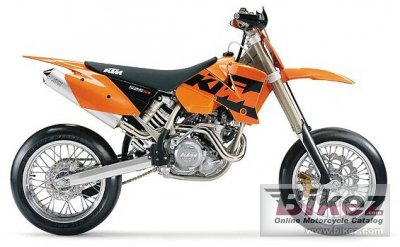

KTM 525 SMR |
|
Year
|
2004 |
|
Category
|
Super motard |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
510.4 ccm (31.14 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Torque
|
43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 4000 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium molybdenum |
|
Front suspension
|
WP-USD 48/26 MA/PA |
|
Rear suspension
|
WP-PDS-DA shock absorber |
|
Front tire
|
120/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
107.5 kg (237.0 pounds) |
|
Seat height
|
855 mm (33.7 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
675 mm (26.6 inches) If adjustable, highest setting. |
|
Overall height
|
525 mm (20.7 inches) |
|
Overall width
|
525 mm (20.7 inches) |
|
Ground clearance
|
310 mm (12.2 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
