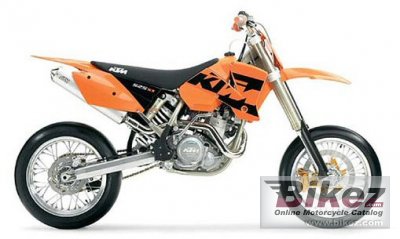

KTM 525 SMC USA 20042004 KTM 525 SMC USA specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| ON THE TARMAC OR IN THE DIRT… With KTM’s SMC off-road wheel kit you get the best of both worlds. This off-road wheel kit achieves the exact specifications of KTM’s powerful 450 SX and 525 SX motocross models and allows the 450 SMC and 525 SMC to be easily converted for dedicated off-road riding. Better yet, these complete wheel kits are delivered, at NO charge, directly to new ’04 450 and 525 SMC owners. |
| General information | |
|---|---|
| Model | KTM 525 SMC USA |
| Year model | 2004 |
| Type | Super motard |
| Rating | 3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 510.4 ccm (31.14 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Torque | 55.0 Nm (5.6 kgf-m or 40.6 ft.lbs) @ 5500 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 95.0 x 72.0 mm (3.7 x 2.8 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Cooling system | Liquid |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium molybdenum |
| Front suspension | WP-USD 48/26 MA/PA |
| Rear suspension | WP-PDS-DA shock absorber |
| Front tire | 120/70-17 |
| Front brakes | Single disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 310 mm (12.2 inches) |
| Physical measures and capacities | |
| Dry weight | 106.3 kg (234.4 pounds) |
| Seat height | 914 mm (36.0 inches) If adjustable, lowest setting. |
| Alternate seat height | 675 mm (26.6 inches) If adjustable, highest setting. |
| Overall height | 525 mm (20.7 inches) |
| Overall width | 525 mm (20.7 inches) |
| Ground clearance | 321 mm (12.6 inches) |
| Wheelbase | 1481 mm (58.3 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Other specifications | |
| Color options | Orange |
| Comments | Available in the US only. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 KTM 525 SMC USA discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2004 KTM 525 SMC USA for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Fun-factor for the 2004 KTM 525 SMC USA:  (74.4 out of 100)Click here for complete rating. |
|
