General information |
Motorcycle name
|

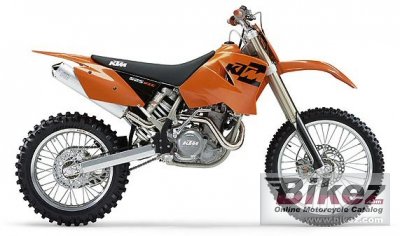

KTM 525 MXC USA |
Year of manufacture
|
2004 |
Type
|
Enduro / offroad |
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
510.4 ccm (31.14 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
11.0:1 |
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Overhead Cams (OHC) |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
Chromium molybdenum |
Rake (fork angle)
|
26.5° |
Front suspension
|
WP-USD 48 MA |
Rear suspension
|
WP-PDS-shock absorber |
Front brakes
|
Single disc |
Diameter
|
216 mm (8.5 inches) |
Rear brakes
|
Single disc |
Diameter
|
260 mm (10.2 inches) |
Physical measures and capacities |
Dry weight
|
118.2 kg (260.6 pounds) |
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
Alternate seat height
|
675 mm (26.6 inches) If adjustable, highest setting. |
Overall height
|
525 mm (20.7 inches) |
Overall width
|
525 mm (20.7 inches) |
Ground clearance
|
385 mm (15.2 inches) |
Wheelbase
|
1481 mm (58.3 inches) |
Fuel capacity
|
14.00 litres (3.70 US gallons) |
Other specifications |
Color options
|
Orange |
Comments
|
Available in the US only. |
