KTM 50 SX Pro Junior LC 20052005 KTM 50 SX Pro Junior LC specifications, pictures, reviews and rating |

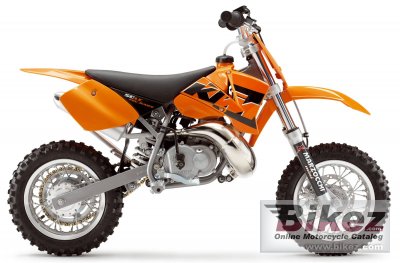

 2005 KTM 50 SX Pro Junior LC. Picture credits - KTM. Submit more pictures.
|
| KTM's profilation of this bike |
| Water-cooling, high performance exhaust, front disc brake. With a seat height of either 585 or 610 mm the 50 SX Pro Junior LC is the perfect bike for ambitious juniors from 5 to 8 years old. |
| General moped information | |
|---|---|
| Model: | KTM 50 SX Pro Junior LC |
| Year: | 2005 |
| Category: | Minibike, cross |
| Rating: | 69 out of 100. Show full rating and compare with other bikes |
| Engine and transmission | |
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Orto PHVA 14 DS |
| Ignition: | Seletra analogue |
| Cooling system: | Liquid |
| Transmission type, final drive: | Chain |
| Clutch: | Centrifugal clutch (adjustable) |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Central double-cradle-type frame |
| Rake (fork angle): | 24.0° |
| Trail: | 69 mm (2.7 inches) |
| Front suspension: | Marzocchi |
| Front wheel travel: | 32 mm (1.3 inches) |
| Rear suspension: | WP monoshock |
| Front brakes: | Single disc |
| Front brakes diameter: | 216 mm (8.5 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 216 mm (8.5 inches) |
| Physical measures and capacities | |
| Dry weight: | 37.6 kg (82.9 pounds) |
| Seat height: | 585 mm (23.0 inches) If adjustable, lowest setting. |
| Ground clearance: | 220 mm (8.7 inches) |
| Wheelbase: | 910 mm (35.8 inches) |
| Fuel capacity: | 1.80 litres (0.48 gallons) |
| Other specifications | |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts |
| Ask questions | Join the 05 KTM 50 SX Pro Junior LC discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every mopedBikez has discussion forums for every moped. View comments, questions and answers at the 2005 KTM 50 SX Pro Junior LC discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the moped's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this KTM moped | |
Engine performance for the 2005 KTM 50 SX Pro Junior LC:  (68.4 out of 100)Click here for complete rating. You can also compare bikes. |
|
|
