KTM 50 SX Pro Junior LC 20042004 KTM 50 SX Pro Junior LC specifications, pictures, reviews and rating |

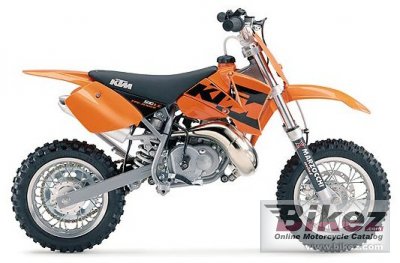

 2004 KTM 50 SX Pro Junior LC. Picture credits - KTM. Submit more pictures. |
|
| KTM's profilation of this bike |
| The sportminicycles for the first competition experiences. And of course for the first victory. For mini-champions ages 5 to 8. With Marzocchi racing fork, WP central shock, and liquid cooled racing sport engine with automatic transmission. Seat height from 585 mm. |
| General moped information | |
|---|---|
| Model: | KTM 50 SX Pro Junior LC |
| Year: | 2004 |
| Category: | Minibike, sport |
| Rating: | 56.4 out of 100. Show full rating and compare with other bikes |
| Engine and transmission | |
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 6.00 HP (4.4 kW)) |
| Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system: | Carburettor |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
| Transmission type, final drive: | Chain |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Central double-cradle-type frame |
| Rake (fork angle): | 24.0° |
| Front suspension: | Marzocchi Ø 32 mm |
| Rear suspension: | WP monoshock |
| Front brakes: | Single disc |
| Front brakes diameter: | 216 mm (8.5 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 216 mm (8.5 inches) |
| Physical measures and capacities | |
| Dry weight: | 37.6 kg (82.9 pounds) |
| Power/weight ratio: | 0.1596 HP/kg |
| Seat height: | 650 mm (25.6 inches) If adjustable, lowest setting. |
| Ground clearance: | 220 mm (8.7 inches) |
| Wheelbase: | 910 mm (35.8 inches) |
| Fuel capacity: | 1.80 litres (0.48 gallons) |
| Other specifications | |
| Further information | |
| Insurance costs | Get a US insurance quote from Progressive. |
| Parts finder |
Chaparral provides online schematics & OEM parts |
| Ask questions | Join the 04 KTM 50 SX Pro Junior LC discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the moped's reliability, repair costs, etc. Show any 2004 KTM 50 SX Pro Junior LC for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such mopeds are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this KTM moped | |
Value for money for the 2004 KTM 50 SX Pro Junior LC:  (46.6 out of 100)Click here for complete rating. You can also compare bikes. |
|
|
|
