KTM 50 SX Mini 20132013 KTM 50 SX Mini specifications, pictures, reviews and rating |

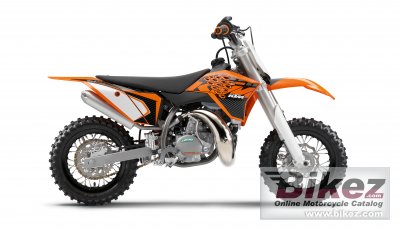

![]() 2013 KTM 50 SX Mini. Picture credits - KTM. Submit more pictures.
|
KTM's profilation of this bike |
It has everything that impresses riders up to height of 1.30 m and reassures their parents: a high-quality chassis with easily applied disc brakes, top-quality components wherever you look, a powerful, reliable engine with easy-to-operate centrifugal clutch. |
General moped information | |
---|---|
Model: | KTM 50 SX Mini |
Year: | 2013 |
Category: | Minibike, cross |
Rating: | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission | |
Displacement: | 49.0 ccm (2.99 cubic inches) |
Engine type: | Single cylinder, two-stroke |
Engine details: | Reed intake |
Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
Fuel system: | Carburettor |
Ignition: | SELETTRA 2p D36 |
Lubrication system: | Separate lubrication |
Cooling system: | Liquid |
Gearbox: | 1-speed |
Transmission type, final drive: | Chain |
Clutch: | 3-lining automatic clutch on the main shaft / centrifugal force |
Driveline: | 11:40. Primary drive: 61:33. Rigid 1-stage reduction gear. |
Chassis, suspension, brakes and wheels | |
Frame type: | Central tube frame of chrome molybdenum steel tubing, powder-coated |
Front suspension: | WP Suspension USD 35 |
Front wheel travel: | 100 mm (3.9 inches) |
Rear suspension: | WP Suspension 3614 BAEM |
Rear wheel travel: | 171 mm (6.7 inches) |
Front brakes: | Single disc. Four-pot brake caliper |
Diameter: | 160 mm (6.3 inches) |
Rear brakes: | Single disc. Two-pot brake caliper |
Diameter: | 140 mm (5.5 inches) |
Physical measures and capacities | |
Dry weight: | 40.5 kg (89.3 pounds) |
Seat height: | 558 mm (22.0 inches) If adjustable, lowest setting. |
Ground clearance: | 184 mm (7.2 inches) |
Wheelbase: | 914 mm (36.0 inches) |
Fuel capacity: | 2.00 litres (0.53 gallons) |
Other specifications | |
Color options: | Orange/black/white |
Starter: | Kick |
