KTM 50 SX Junior 20092009 KTM 50 SX Junior specifications, pictures, reviews and rating |

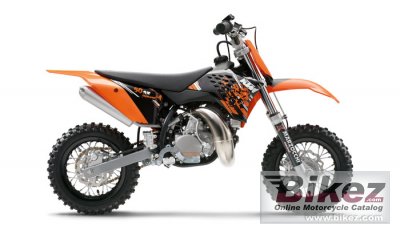

 2009 KTM 50 SX Junior. Picture credits - KTM. Submit more pictures.
|
| KTM's profilation of this bike |
| Just a normal day in the life of a future champion. Throw everyday life out the window, grab your kit and get out on your KTM 50 SX Junior. Away to offroad enjoyment – the training track awaits. Plough through the countryside, scatter the gravel and inhale that racing feeling. |
| General moped information | |
|---|---|
| Model: | KTM 50 SX Junior |
| Year: | 2009 |
| Category: | Minibike, cross |
| Rating: | 3.1 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement: | 49.0 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Compression: | 12.5:1 |
| Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Orto PHVA 14 DS |
| Ignition: | Seletra analogue |
| Lubrication system: | Mixture lubrication |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
| Clutch: | Centrifugal clutch (adjustable) |
| Exhaust system: | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Central double-cradle-type frame. Steel subframe. |
| Rake (fork angle): | 24.0° |
| Trail: | 140 mm (5.5 inches) |
| Front suspension: | Marzocchi |
| Front wheel travel: | 205 mm (8.1 inches) |
| Rear suspension: | WP monoshock |
| Rear wheel travel: | 125 mm (4.9 inches) |
| Front tyre: | 2.5-10 |
| Rear tyre: | 2.75-10 |
| Front brakes: | Single disc |
| Diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Single disc |
| Diameter: | 140 mm (5.5 inches) |
| Physical measures and capacities | |
| Dry weight: | 37.6 kg (82.9 pounds) |
| Seat height: | 607 mm (23.9 inches) If adjustable, lowest setting. |
| Ground clearance: | 220 mm (8.7 inches) |
| Wheelbase: | 910 mm (35.8 inches) |
| Fuel capacity: | 2.30 litres (0.61 gallons) |
| Other specifications | |
| Color options: | Orange/black |
| Starter: | Kick |
| Comments: | Intended for children. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts |
| Ask questions | Join the 09 KTM 50 SX Junior discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every mopedBikez has discussion forums for every moped. View comments, questions and answers at the 2009 KTM 50 SX Junior discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the moped's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this KTM moped | |
Value for money for the 2009 KTM 50 SX Junior:  (62.9 out of 100)Click here for complete rating. You can also compare bikes. |
|
|
