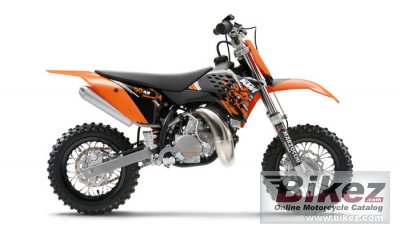

KTM 50 SX Junior 20082008 KTM 50 SX Junior specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| And getting off it? Yeah okay, but only when the tank is empty. |
| General moped information | |
|---|---|
| Model | KTM 50 SX Junior |
| Model year | 2008 |
| Category | Minibike, cross |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 12.5:1 |
| Bore x stroke | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system | Carburettor. Dell´Orto PHVA 14 DS |
| Ignition | Seletra analogue |
| Lubrication system | Mixture lubrication 1:60 |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Clutch | Centrifugal clutch (adjustable) |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type frame |
| Rake (fork angle) | 24.0° |
| Trail | 90 mm (3.5 inches) |
| Front suspension | Marzocchi |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | WP monoshock |
| Rear wheel travel | 125 mm (4.9 inches) |
| Front tire | 2.50-10 |
| Rear tire | 2.75-10 |
| Front brakes | Single disc. Bremo |
| Diameter | 160 mm (6.3 inches) |
| Rear brakes | Expanding brake (drum brake). Bremo |
| Diameter | 90 mm (3.5 inches) |
| Physical measures and capacities | |
| Dry weight | 37.6 kg (82.9 pounds) |
| Seat height | 585 mm (23.0 inches) If adjustable, lowest setting. |
| Ground clearance | 220 mm (8.7 inches) |
| Wheelbase | 910 mm (35.8 inches) |
| Fuel capacity | 1.80 litres (0.48 US gallons) |
| Other specifications | |
| Starter | Kick |
| Comments | Intended for children 6-9 years old. |
