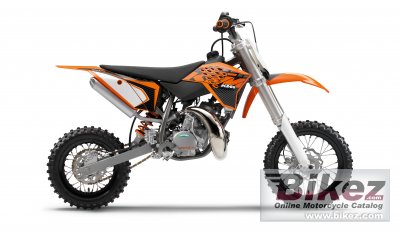

KTM 50 SX 20132013 KTM 50 SX specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| A real KTM for the smallest of future MX champions from the age of three or four years. The 40 kg, lightweight 2013 KTM 50 SX sets standards in terms of safety, controllability and riding fun. It has everything that impresses riders up to height of 1.30 m and reassures their parents: a high-quality chassis with easily applied disc brakes, top-quality components wherever you look, a powerful, reliable engine with easy-to-operate centrifugal clutch. |
| General moped information | |
|---|---|
| Motorcycle name | KTM 50 SX |
| Year of manufacture | 2013 |
| Type | Cross / motocross |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Engine details | Reed intake. |
| Bore x stroke | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Ignition | SELETTRA 2p D36 |
| Lubrication system | Mixture oil lubrication |
| Cooling system | Liquid |
| Transmission type | Chain (final drive) |
| Clutch | 3-lining automatic clutch on the main shaft / centrifugal force |
| Driveline | 11:40. Primary drive: 33:61 straight cut spur gear. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame of chrome molybdenum steel tubing, powder-coated |
| Rake (fork angle) | 24.0° |
| Front suspension | WP Suspension USD 35 |
| Front wheel travel | 205 mm (8.1 inches) |
| Rear suspension | WP Suspension 3614 BAEM |
| Rear wheel travel | 185 mm (7.3 inches) |
| Front brakes | Single disc. Four-piston calipers. |
| Diameter | 160 mm (6.3 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 140 mm (5.5 inches) |
| Physical measures and capacities | |
| Dry weight | 41.5 kg (91.5 pounds) |
| Seat height | 684 mm (26.9 inches) If adjustable, lowest setting. |
| Ground clearance | 252 mm (9.9 inches) |
| Wheelbase | 1032 mm (40.6 inches) |
| Fuel capacity | 2.30 litres (0.61 US gallons) |
| Other specifications | |
| Color options | Orange/black |
| Starter | Kick |
