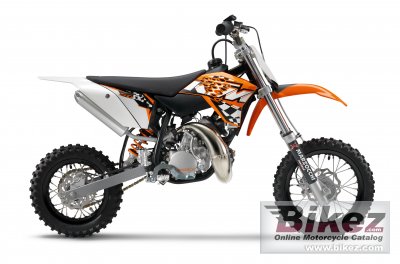

| KTM's profilation of this bike |
| A real KTM for racers aged between about 4 and 10 years and up to a height of 130cm. This is no ´toy´ with dodgily built cheap components; this is a proper motorcycle that sets standards in its class for safety, child ergonomics and riding fun. |
| General moped information |
|---|
| Model: | KTM 50 SX |
| Year: | 2011 |
| Category: | Minibike, cross |
| Rating: | 66.6 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Orto PHBG 19 BS |
| Ignition: | Seletra 2p D36 |
| Lubrication system: | Mixture oil lubrication 1:60 |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Clutch: | Centrifugal clutch (adjustable) |
| Driveline: | 11:40. Primary drive: 61:33. |
| Exhaust system: | Aluminium |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double grinded central double-cradle-type frame. Subframe: Steel. |
| Rake (fork angle): | 24.0° |
| Front suspension: | Marzocchi 32 mm (1.26 in) |
| Front wheel travel: | 185 mm (7.3 inches) |
| Rear suspension: | WP mono shock |
| Rear wheel travel: | 185 mm (7.3 inches) |
| Front tyre: | 60/100-12 |
| Rear tyre: | 2.75-10 |
| Front brakes: | Single disc |
| Front brakes diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 140 mm (5.5 inches) |
| Wheels: | 1.5 x 12in., 1.6 x 10in. Alu |
| Physical measures and capacities |
|---|
| Dry weight: | 39.8 kg (87.7 pounds) |
| Seat height: | 684 mm (26.9 inches) If adjustable, lowest setting. |
| Ground clearance: | 252 mm (9.9 inches) |
| Wheelbase: | 1,032 mm (40.6 inches) |
| Fuel capacity: | 2.30 litres (0.61 gallons) |
| Other specifications |
|---|
| Color options: | Orange, black, white |
| Starter: | Kick |
| Further information |
|---|
