| KTM's profilation of this bike |
| Small, fascinating and unbelievably snappy – that’s how best to describe this miniature rocket. Not only does it look like the big SX machines, it also has virtually identical riding behaviour. Both the chassis and the engine have been completely newly developed, which makes the 50 SX a fantastic handling, unbeatable high-tech weapon. |
| General moped information |
|---|

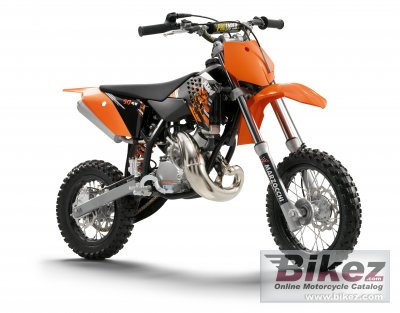

| Model: | KTM 50 SX |
| Year: | 2009 |
| Category: | Minibike, cross |
| Rating: | 59.8 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Compression: | 12.5:1 |
| Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Orto PHBG 19 BS |
| Ignition: | Seletra analogue |
| Lubrication system: | Mixture lubrication 1:60 |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Clutch: | Centrifugal clutch |
| Exhaust system: | Aluminium |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double grinded central double-cradle-type frame. Steel subframe. |
| Rake (fork angle): | 24.0° |
| Trail: | 90 mm (3.5 inches) |
| Front suspension: | Marzocchi, 32 mm |
| Front wheel travel: | 185 mm (7.3 inches) |
| Rear suspension: | WP monoshock |
| Rear wheel travel: | 185 mm (7.3 inches) |
| Front tyre: | 60/100-12 |
| Rear tyre: | 2.75-10 |
| Front brakes: | Single disc. Bremo |
| Front brakes diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Single disc. Bremo |
| Rear brakes diameter: | 140 mm (5.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 39.8 kg (87.7 pounds) |
| Seat height: | 684 mm (26.9 inches) If adjustable, lowest setting. |
| Ground clearance: | 255 mm (10.0 inches) |
| Wheelbase: | 1,030 mm (40.6 inches) |
| Fuel capacity: | 2.30 litres (0.61 gallons) |
| Other specifications |
|---|
| Color options: | Orange/black |
| Starter: | Kick |
