| KTM's profilation of this bike |

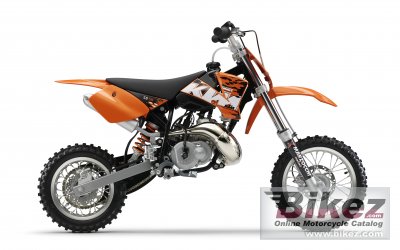

| Only the best power, performance and appearance are good enough for first place: the KTM 50 SX – a winner for every ace from the ages of six to nine. The seat height is adjustable from 650 mm upwards, with long suspension travel, disk brakes at the front and rear, a chain guard, as well as the best power output available in this class. |
|
General moped information |
|
Motorcycle name
|
KTM 50 SX |
|
Year of manufacture
|
2008 |
|
Type
|
Minibike, cross |
|
Rating
|
3.5 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
39.5 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHBG 19 BS |
|
Ignition
|
Seletra analogue |
|
Lubrication system
|
Mixture lubrication 1:60 |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Centrifugal clutch (adjustable) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double grinded central double-cradle-type frame |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
90 mm (3.5 inches) |
|
Front suspension
|
Marzocchi Ø 32 mm (1.26 |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
WP monoshock |
|
Rear wheel travel
|
125 mm (4.9 inches) |
|
Front tire
|
2.50-12 |
|
Rear tire
|
2.75-10 |
|
Front brakes
|
Single disc. Bremo |
|
Diameter
|
160 mm (6.3 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
140 mm (5.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
38.8 kg (85.5 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
685 mm (27.0 inches) If adjustable, highest setting. |
|
Ground clearance
|
255 mm (10.0 inches) |
|
Wheelbase
|
1030 mm (40.6 inches) |
|
Fuel capacity
|
1.80 litres (0.48 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
