| KTM's profilation of this bike |
| The KTM 50 SX is no toy. Its a real competitive motorcycle that you can use out on the track to show how good you really are. To prove that, just take a look at the long suspension travel and the front and rear disc brakes. |
| General moped information |
|---|

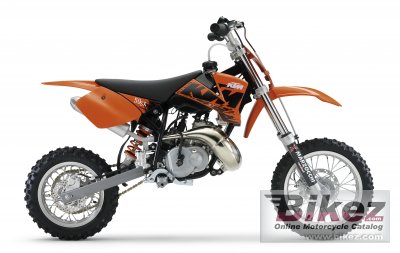

| Model: | KTM 50 SX |
| Year: | 2007 |
| Category: | Minibike, cross |
| Rating: | 60.7 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Valves per cylinder: | 1 |
| Fuel system: | Carburettor. Dell´Orto PHBG 19 BS |
| Ignition: | Seletra analogue |
| Lubrication system: | 0,15 - 0,2 l Motorex ATF Super |
| Cooling system: | Liquid |
Transmission type,
final drive: | Chain |
| Clutch: | Centrifugal clutch, adjustable |
| Exhaust system: | Aluminium |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central double-cradle-type frame |
| Rake (fork angle): | 24.0° |
| Front suspension: | Marzocchi, 23 mm |
| Front wheel travel: | 115 mm (4.5 inches) |
| Rear suspension: | WP monoshock |
| Rear wheel travel: | 185 mm (7.3 inches) |
| Front brakes: | Single disc |
| Front brakes diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 140 mm (5.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 38.8 kg (85.5 pounds) |
| Seat height: | 650 mm (25.6 inches) If adjustable, lowest setting. |
| Ground clearance: | 255 mm (10.0 inches) |
| Wheelbase: | 1,030 mm (40.6 inches) |
| Fuel capacity: | 1.80 litres (0.48 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US.
2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Ask questions | Join the 07 KTM 50 SX discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this KTM moped
|
Racing track capabilities for the 2007 KTM 50 SX:
 (75.2 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
