| KTM's profilation of this bike |
| Long suspension travel, front and rear disc brakes plus the most performance you can get for your money in this class. Adjustable seat levels from 650 mm. Designed for racing aces between 6 and 10 years. |
| General moped information |
|---|

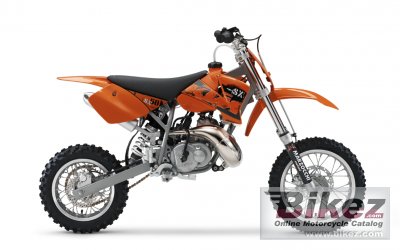

| Model: | KTM 50 SX |
| Year: | 2006 |
| Category: | Minibike, cross |
| Rating: | 3.2 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 49.0 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Orto PHBG 19 BS |
| Ignition: | Seletra analog |
| Lubrication system: | 0,15- 0,2 l Motorex ATF Super |
| Cooling system: | Liquid |
| Clutch: | Centrifugal clutch (adjustable) |
| Exhaust system: | Aluminum |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central double-cradle-type frame |
| Rake (fork angle): | 24.0° |
| Front suspension: | Marzocchi 32 mm (1.26 inches) |
| Rear suspension: | WP monoshock |
| Front brakes: | Single disc |
| Diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Single disc |
| Diameter: | 140 mm (5.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 38.8 kg (85.5 pounds) |
| Seat height: | 650 mm (25.6 inches) If adjustable, lowest setting. |
| Ground clearance: | 255 mm (10.0 inches) |
| Wheelbase: | 1030 mm (40.6 inches) |
| Fuel capacity: | 1.80 litres (0.48 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
