| KTM's profilation of this bike |

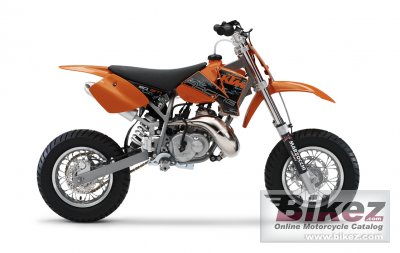

| We reckon you can’t start practicing breath-taking slides early enough. That’s why there is a brand new KTM 50 Supermoto with ultra grippy 10 inches Supermoto tyres and special KTM Supermoto-design, especially for slide specialists between 6-9-yearsold. |
| General moped information |
|---|
| Model | KTM 50 Supermoto |
| Year | 2006 |
| Category | Minibike, cross |
| Rating | 3.2 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Bore x stroke | 39.5 x 40.0 mm (1.6 x 1.6 inches) |
| Fuel system | Carburettor. Dell´Orto PHBG 19 BS |
| Ignition | Seletra analog |
| Lubrication system | 0,15- 0,2 l Motorex ATF Super |
| Cooling system | Liquid |
| Clutch | Centrifugal clutch (adjustable) |
| Exhaust system | Aluminum |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Central double-cradle-type frame |
| Rake (fork angle) | 24.0° |
| Front suspension | Marzocchi 32 mm (1.26 inches) |
| Rear suspension | WP monoshock |
| Front brakes | Single disc |
| Diameter | 160 mm (6.3 inches) |
| Rear brakes | Single disc |
| Diameter | 140 mm (5.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 38.8 kg (85.5 pounds) |
| Seat height | 650 mm (25.6 inches) If adjustable, lowest setting. |
| Ground clearance | 255 mm (10.0 inches) |
| Wheelbase | 1030 mm (40.6 inches) |
| Fuel capacity | 1.80 litres (0.48 US gallons) |
| Other specifications |
|---|
| Starter | Kick |
| Comments | Not available in the US. |
