| KTM's profilation of this bike |

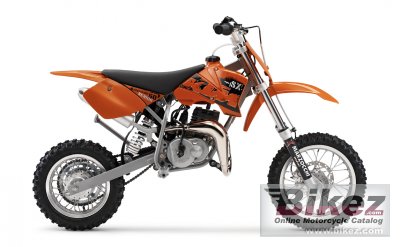

| The 50 Senior Adventure is the perfect bike for little racers between 6 and 8 years. This is an outstanding bike featuring a robust air-cooled engine, long suspension travel and front disc brake. The seat can be adjusted to 650 or 675 mm. |
|
General moped information |
|
Model name
|
KTM 50 Senior Adventurer |
|
Model year
|
2006 |
|
Category
|
Minibike, cross |
|
Rating
|
3.5 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.0 ccm (2.99 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Bore x stroke
|
39.5 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHVA 14DS |
|
Ignition
|
Seletra analog |
|
Lubrication system
|
0,15- 0,2 l Motorex ATF Super |
|
Cooling system
|
Air |
|
Clutch
|
Centrifugal clutch (adjustable) |
|
Exhaust system
|
Aluminum |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type frame |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
Marzocchi 32 mm (1.26 inches) |
|
Rear suspension
|
Paioli monoshock |
|
Front brakes
|
Single disc |
|
Diameter
|
160 mm (6.3 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
90 mm (3.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
38.4 kg (84.7 pounds) |
|
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
|
Ground clearance
|
255 mm (10.0 inches) |
|
Wheelbase
|
1030 mm (40.6 inches) |
|
Fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 KTM 50 Senior Adventurer discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this KTM moped
|
Offroad capabilities for the 2006 KTM 50 Senior Adventurer:
 (69.1 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
