| KTM's profilation of this bike |
| This is a perfect introduction to KTM for kids from 3 years-old. The centrifugal clutch attached to the rear wheel makes controlling the bike’s performance child’s play. The seat height of 530 mm is ideal for the really young rider. |
|
General moped information |
|
Motorcycle name
|

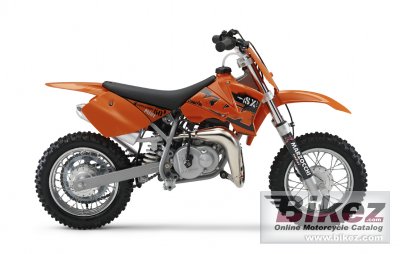

KTM 50 Mini Adventure |
|
Year
|
2006 |
|
Category
|
Minibike, cross |
|
Rating
|
3.1 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.0 ccm (2.99 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Bore x stroke
|
39.5 x 40.0 mm (1.6 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHVA 12 XS |
|
Ignition
|
Seletra analogue |
|
Lubrication system
|
0,15- 0,2 l Motorex ATF Super |
|
Cooling system
|
Air |
|
Clutch
|
Centrifugal clutch (adjustable) |
|
Exhaust system
|
Aluminum |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type frame |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
Marzocchi 32 mm (1.26 inches) |
|
Rear suspension
|
Paioli monoshock |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
37.8 kg (83.3 pounds) |
|
Seat height
|
530 mm (20.9 inches) If adjustable, lowest setting. |
|
Ground clearance
|
182 mm (7.2 inches) |
|
Wheelbase
|
910 mm (35.8 inches) |
|
Fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
