KTM 505 SX F 20072007 KTM 505 SX F specifications, pictures, reviews and rating |

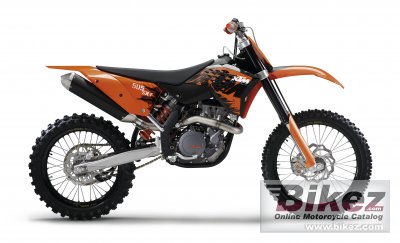

2007 KTM 505 SX F. Image credits - KTM.
| KTM's profilation of this bike |
| The maximum is an understatement! With the 505 SX-F, KTM has developed a high-tech racing bike that appeals to riders who are constantly in search of the ultimate. Here, the “Ready to Race” concept clearly turns into “Ready to Win”. Due to its incredible torque, merciless propulsion and unsurpassed performance, it plainly shows who’s the boss in the MX3 class. |
| General information | |
|---|---|
| Model | KTM 505 SX F |
| Year of manufacture | 2007 |
| Type | Enduro / offroad |
| Rating | 3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 477.5 ccm (29.14 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 12.5:1 |
| Bore x stroke | 100.0 x 60.8 mm (3.9 x 2.4 inches) |
| Fuel system | Carburettor. Keihin MX FCR 41 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Kokusan digital DC-CDI |
| Lubrication system | Pressure lubrication |
| Cooling system | Liquid |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central double-cradle-type 25CrMo4 |
| Front suspension | WP USD Ø 48 mm (1.89´) |
| Rear suspension | 300 / 335 mm (11.81 / 13.19´) |
| Front tire | 80/100-21 |
| Rear tire | 110/90-19 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 104.6 kg (230.6 pounds) |
| Seat height | 925 mm (36.4 inches) If adjustable, lowest setting. |
| Ground clearance | 380 mm (15.0 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 8.20 litres (2.17 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 07 KTM 505 SX F discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2007 KTM 505 SX F for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Value for money for the 2007 KTM 505 SX F:  (72.6 out of 100)Click here for complete rating. |
|
