| KTM's profilation of this bike |

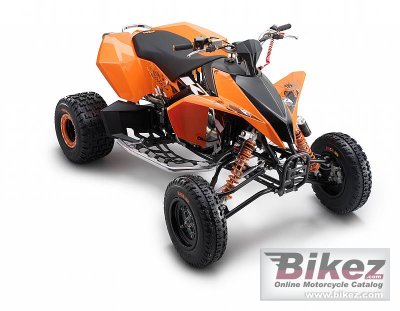

| The Motocross-Quad 505 SX is a thoroughbred racing machine and just as uncompromisingly designed for victory as the MX motorcycles from KTM. Every single detail takes account of this requirement, from the elaborate ergonomics to the multi-adjustable chassis. |
|
General information |
|
Model
|
KTM 505 SX |
|
Year model
|
2012 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
477.5 ccm (29.14 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
100.0 x 60.8 mm (3.9 x 2.4 inches) |
|
Fuel system
|
Carburettor. Keihin FCR MX 39 |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
|
Lubrication system
|
Forced oil lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch / hydraulically operated |
|
Driveline
|
Primary gear ratio 26:78 straight cut spur gear. Secondary gear ratio 14:38. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double-cradle frame made from chrome-molybdenum steel tubing, powder-coated |
|
Front suspension
|
Independent wheels suspension with double wishbone |
|
Front wheel travel
|
244 mm (9.6 inches) |
|
Rear suspension
|
Rigid axle |
|
Rear wheel travel
|
258 mm (10.2 inches) |
|
Front tire
|
21/7-10 |
|
Rear tire
|
20/11-9 |
|
Front brakes
|
Double disc. 4-piston fixed caliper |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Single disc. Single piston floating caliper |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
165.0 kg (363.8 pounds) |
|
Weight incl. oil, gas, etc
|
173.0 kg (381.4 pounds) |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Ground clearance
|
265 mm (10.4 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
13.40 litres (3.54 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black |
|
Starter
|
Electric |
