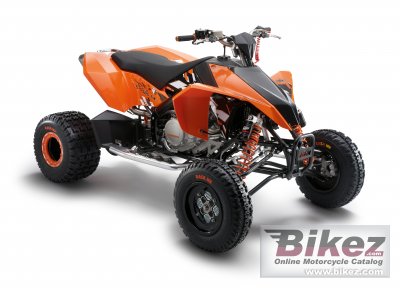

| KTM's profilation of this bike |
| Are you looking for the ultimate SX fighting machine? Power and torque in spades? Then give yourself the power of the ATV performance champion in the field of quad cross. Here, brutal acceleration meets excellent handling, perfect ergonomics meet unbeatable state of the art technical components. |
|
General information |
|
Model name
|
KTM 505 SX |
|
Year
|
2009 |
|
Category
|
ATV |
|
Rating
|
3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
477.0 ccm (29.11 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
100.0 x 60.8 mm (3.9 x 2.4 inches) |
|
Fuel system
|
Carburettor. Keihin FCR-MX 41 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan digital |
|
Lubrication system
|
Dry sump, pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminum SX Racing w / Spark Arrestor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromoly |
|
Front suspension
|
WP fully adjustable, twin A-arms |
|
Front wheel travel
|
244 mm (9.6 inches) |
|
Rear suspension
|
WP PDS mono-shock, fully adjustable, swingarm |
|
Rear wheel travel
|
258 mm (10.2 inches) |
|
Front tire
|
20/6-10 |
|
Rear tire
|
18/10-8 |
|
Front brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
165.0 kg (363.8 pounds) |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Ground clearance
|
265 mm (10.4 inches) |
|
Fuel capacity
|
10.30 litres (2.72 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
