| KTM's profilation of this bike |
| The maximum is an understatement! With the 505 SX-F, KTM has developed a high-tech racing bike that appeals to riders who are constantly in search of the ultimate. Here, the “Ready to Race” concept clearly turns into “Ready to Win”. |
|
General information |
|
Motorcycle name
|

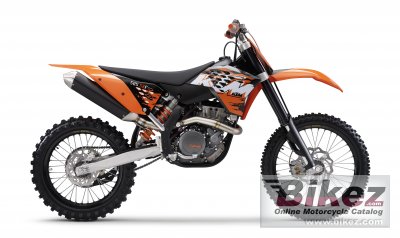

KTM 505 SX-F |
|
Year
|
2008 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
477.5 ccm (29.14 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
100.0 x 60.8 mm (3.9 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin MX FCR 41 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan digital DC-CDI |
|
Lubrication system
|
Pressure lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25 CrMo 4 |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP USD 48 mm |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP monoshock PDS |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
104.6 kg (230.6 pounds) |
|
Seat height
|
960 mm (37.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Other specifications |
|
Starter
|
Kick |
