| KTM's profilation of this bike |
| The 500 EXC´s new, lighter, cast aluminium swingarm accommodates the shock absorber more centrally, in order to load the swing arms more evenly. The new, 7 mm longer PDS shock absorber with adjustable rebound and high/low-speed compression damping, and a new setting is installed more flatly, so providing even more progression.
|
|
General information |
|
Model
|

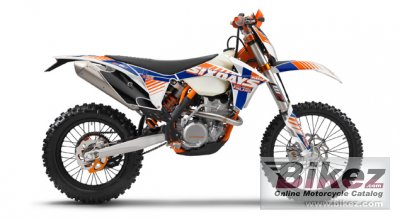

KTM 500 EXC Six Days |
|
Model year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
510.4 ccm (31.14 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
OHC with rocker levers |
|
Compression
|
11.8:1 |
|
Bore x stroke
|
95.0 x 72.0 mm (3.7 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI, flow restrictor 42 mm |
|
Ignition
|
Keihin EMS |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, Brembo hydraulics |
|
Driveline
|
14:50 (13:50). Primary ratio 32:76. |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4. Subframe: Aluminium. |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP-USD 48 mm |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP-PDS shock absorber |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
1.60 x 21´´; 2.15 x 18´´ Excel |
|
Physical measures and capacities |
|
Dry weight
|
111.5 kg (245.8 pounds) |
|
Seat height
|
970 mm (38.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
345 mm (13.6 inches) |
|
Wheelbase
|
1482 mm (58.3 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Orange/white/black/blue |
|
Starter
|
Electric & kick |
|
Comments
|
Racing tuned model. |
