KTM 500 EXC 20132013 KTM 500 EXC specifications, pictures, reviews and rating |

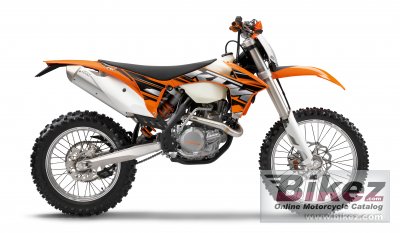

2013 KTM 500 EXC. Image credits - KTM.
| KTM's profilation of this bike |
| For all those who are forever seeking a little bit more. Perfectly controllable power in extravagant proportions, low weight and an unsurpassed chassis characterise an enduro of remarkable versatility: a sensational fighting machine and absolutely reliable workhorse rolled into one, the indisputable benchmark in terms of weight and rideability – the KTM 500 EXC. |
| General information | |
|---|---|
| Model name | KTM 500 EXC |
| Model year | 2013 |
| Category | Enduro / offroad |
| Rating | 3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 510.4 ccm (31.14 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 95.0 x 72.0 mm (3.7 x 2.8 inches) |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Lubrication system | Forced oil lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 5/8 x 1/4 |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA PA |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | WP Suspension PDS 5018 DCC |
| Rear wheel travel | 335 mm (13.2 inches) |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 112.5 kg (248.0 pounds) |
| Seat height | 970 mm (38.2 inches) If adjustable, lowest setting. |
| Ground clearance | 345 mm (13.6 inches) |
| Wheelbase | 1482 mm (58.3 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Color options | Orange/black |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
