| KTM's profilation of this bike |
| Minimum weight, maximum power, perfect handling and peak performance in the hardest of races – these are properties which distinguish a real cross-country champion. The KTM 450 XC has been developed for precisely this field and is aimed 100% at a single goal: podium places! |
|
General information |
|
Motorcycle name
|

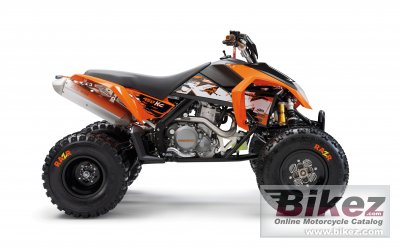

KTM 450 XC ATV |
|
Year
|
2009 |
|
Category
|
ATV |
|
Rating
|
3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
447.9 ccm (27.33 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
89.0 x 72.0 mm (3.5 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin FCR-MX 39 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Kokusan digital |
|
Lubrication system
|
Dry sump, pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Aluminum XC w / Spark Arrestor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromoly |
|
Front suspension
|
Öhlins fully adjustable, twin A-arms |
|
Front wheel travel
|
257 mm (10.1 inches) |
|
Rear suspension
|
Öhlins PDS mono-shock, fully adjustable, swingarm |
|
Rear wheel travel
|
265 mm (10.4 inches) |
|
Front tire
|
21/7-10 |
|
Rear tire
|
20/11-9 |
|
Front brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
163.0 kg (359.4 pounds) |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Ground clearance
|
290 mm (11.4 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
13.40 litres (3.54 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
