| KTM's profilation of this bike |
| The 450 XC-W has been the undisputed top dog in the top tier for many years now and is always one step ahead. But that was yesterday. Now we have taken 2 steps further: New engine generation featuring electronic fuel injection, less weight, more efficiently convertible power and revolutionary new bodywork. The advantage has never been greater. |
|
General information |
|
Motorcycle name
|

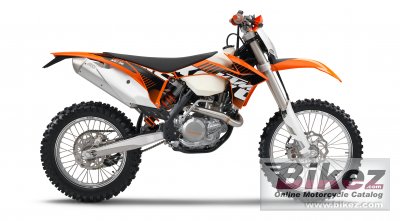

KTM 450 XC-W |
|
Model year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
449.3 ccm (27.42 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Titanium valves |
|
Max RPM
|
12000 |
|
Compression
|
13.2:1 |
|
Bore x stroke
|
95.0 x 63.4 mm (3.7 x 2.5 inches) |
|
Fuel system
|
Injection. EFI |
|
Ignition
|
Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan |
|
Lubrication system
|
Pressure circulation lubrication with two rotary pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multidisc clutch in oil bath / hydraulically activated |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA PA |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Suspension PDS 5018 DCC |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc. Brake calipers on floating bearings |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. Brake calipers on floating bearings |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
111.0 kg (244.7 pounds) |
|
Seat height
|
970 mm (38.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
345 mm (13.6 inches) |
|
Wheelbase
|
1482 mm (58.3 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black/white |
|
Starter
|
Electric & kick |
