| KTM's profilation of this bike |

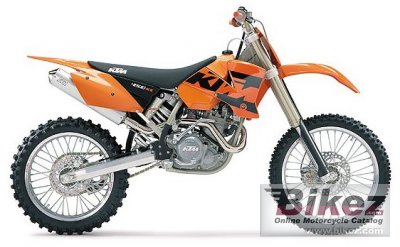

| A highly manageable chassis of a 250 combined with the predominant performance pattern of the new 450 4-stroke engine, ready for riding with less than 105 kg. With the 450 SX Racing a custom-made competition crosser was made for its class.
|
|
General information |
|
Motorcycle name
|
KTM 450 SX Racing |
|
Year model
|
2004 |
|
Type
|
Cross / motocross |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
449.4 ccm (27.42 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
95.0 x 63.4 mm (3.7 x 2.5 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium molybdenum |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
64 mm (2.5 inches) |
|
Front suspension
|
WP-USD 48/26 MA/PA |
|
Rear suspension
|
WP-PDS-DA shock absorber |
|
Front brakes
|
Single disc |
|
Diameter
|
216 mm (8.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Physical measures and capacities |
|
Dry weight
|
104.9 kg (231.3 pounds) |
|
Seat height
|
925 mm (36.4 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
675 mm (26.6 inches) If adjustable, highest setting. |
|
Overall width
|
450 mm (17.7 inches) |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
