| KTM's profilation of this bike |
| For everyone for whom only winning counts in racing, the 450 SX is the perfect choice – because in this ATV, everything is just right! Only the best components are good enough for this champion. |
|
General information |
|
Model
|

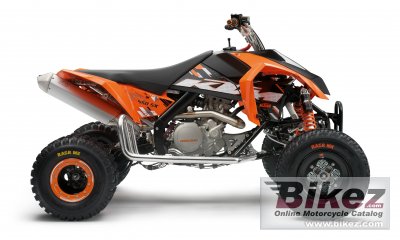

KTM 450 SX ATV |
|
Year
|
2010 |
|
Category
|
ATV |
|
Rating
|
4.0 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
449.0 ccm (27.40 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
97.0 x 60.8 mm (3.8 x 2.4 inches) |
|
Fuel system
|
Carburettor. Keihin FCR MX 41 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan digital |
|
Lubrication system
|
Dry sump, pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
|
Exhaust system
|
Aluminum SX Racing w / Spark Arrestor |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromoly |
|
Front suspension
|
WP fully adjustable, twin A-arms |
|
Front wheel travel
|
257 mm (10.1 inches) |
|
Rear suspension
|
WP PDS mono-shock, fully adjustable, swingarm |
|
Rear wheel travel
|
265 mm (10.4 inches) |
|
Front tire
|
20/6-10 |
|
Rear tire
|
18/10-8 |
|
Front brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
165.0 kg (363.8 pounds) |
|
Seat height
|
795 mm (31.3 inches) If adjustable, lowest setting. |
|
Ground clearance
|
265 mm (10.4 inches) |
|
Wheelbase
|
1280 mm (50.4 inches) |
|
Fuel capacity
|
10.30 litres (2.72 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black |
|
Starter
|
Electric |
