KTM 450 SX 20092009 KTM 450 SX specifications, pictures, reviews and rating |

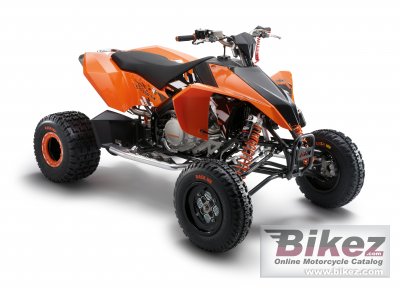

2009 KTM 450 SX. Image credits - KTM.
| KTM's profilation of this bike |
| For everyone for whom only winning counts in racing, the 450 SX is the perfect choice – because in this ATV, everything is just right! Only the best components are good enough for this champion. |
| General information | |
|---|---|
| Model | KTM 450 SX |
| Year model | 2009 |
| Type | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 449.0 ccm (27.40 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 12.5:1 |
| Bore x stroke | 97.0 x 60.8 mm (3.8 x 2.4 inches) |
| Fuel system | Carburettor. Keihin FCR-MX 41 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Kokusan digital |
| Lubrication system | Dry sump, pressure lubrication with 2 Eaton pumps |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Clutch | Wet multi-disc clutch, operated hydraulically |
| Exhaust system | Aluminum SX Racing w / Spark Arrestor |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromoly |
| Front suspension | WP fully adjustable, twin A-arms |
| Front wheel travel | 244 mm (9.6 inches) |
| Rear suspension | WP PDS mono-shock, fully adjustable, swingarm |
| Rear wheel travel | 258 mm (10.2 inches) |
| Front tire | 20/6-10 |
| Rear tire | 18/10-8 |
| Front brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Single disc |
| Diameter | 200 mm (7.9 inches) |
| Physical measures and capacities | |
| Dry weight | 165.0 kg (363.8 pounds) |
| Seat height | 795 mm (31.3 inches) If adjustable, lowest setting. |
| Ground clearance | 265 mm (10.4 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 10.30 litres (2.72 US gallons) |
| Other specifications | |
| Starter | Electric |
