| KTM's profilation of this bike |
| A completely new, significantly lighter engine, featuring groundbreaking injection technology, guarantees brutal yet controllable power. Packed into a chassis, which has been improved massively in terms of bodywork, frame and suspension, the KTM 450 SX and #8209;F 2013 sets a new benchmark among the 450 four-strokes in terms of performance and manoeuvrability with its easy handling. |
|
General information |
|
Motorcycle name
|

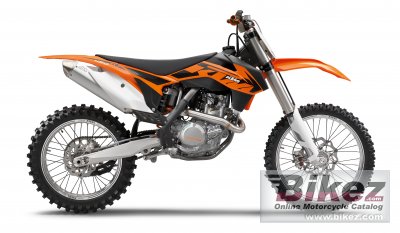

KTM 450 SX-F |
|
Model year
|
2013 |
|
Category
|
Cross / motocross |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
449.3 ccm (27.42 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Bore x stroke
|
95.0 x 63.4 mm (3.7 x 2.5 inches) |
|
Ignition
|
Contactless controlled fully electronic ignition with digital ignition adjustment |
|
Lubrication system
|
Pressure circulation lubrication with two Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
4-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multidisc clutch in oil bath/hydraulically activated |
|
Driveline
|
5/8 x 1/4 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tubular frame made from chrome molybdenum steel tubes |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA CC |
|
Front wheel travel
|
205 mm (8.1 inches) |
|
Rear suspension
|
WP Suspension 5018 BAVP DCC |
|
Rear wheel travel
|
185 mm (7.3 inches) |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc. Two-piston calipers. |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
106.2 kg (234.1 pounds) |
|
Seat height
|
992 mm (39.1 inches) If adjustable, lowest setting. |
|
Ground clearance
|
375 mm (14.8 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Orange/black |
|
Starter
|
Electric |
