| KTM's profilation of this bike |
| This isn´t just a bike, it´s a racing machine that is instantly the main contender on all tracks. |
|
General information |
|
Model name
|

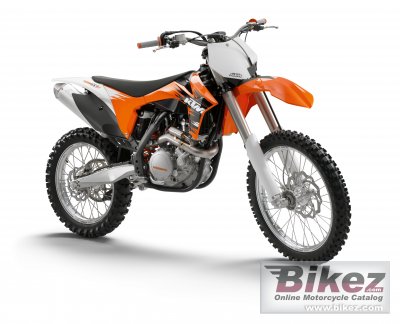

KTM 450 SX-F |
|
Model year
|
2011 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
449.3 ccm (27.42 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
97.0 x 60.8 mm (3.8 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin FCR MX 41 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressure lubrication with 3 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
|
Exhaust system
|
Aluminium |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25CrMo4. Aluminium subframe. |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP-USD fork |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP PDS shock absorber |
|
Rear wheel travel
|
330 mm (13.0 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
106.9 kg (235.7 pounds) |
|
Seat height
|
992 mm (39.1 inches) If adjustable, lowest setting. |
|
Ground clearance
|
371 mm (14.6 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
|
Starter
|
Electric |
|
Electrical
|
12V 3 Ah battery |
|
Comments
|
Offroad competition model |
