| KTM's profilation of this bike |
| When it comes to winning in the MX1, nobody gets past the 450 SX-F. Trend-setting technology for the engine and frame, plus an extremely light chassis make this bike the ultimate mean machine. Other ingenious features, like its super-light electric starter, can save you crucial seconds when the going gets tough. |
|
General information |
|
Model name
|

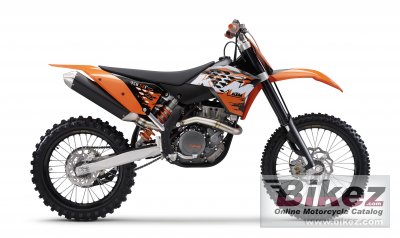

KTM 450 SX-F |
|
Year model
|
2008 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
449.3 ccm (27.42 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
97.0 x 60.8 mm (3.8 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin MX FCR 41 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan digital DC-CDI |
|
Lubrication system
|
Pressure lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Driveline
|
14:52 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central double-cradle-type 25 CrMo4 |
|
Rake (fork angle)
|
26.5° |
|
Front suspension
|
WP USD |
|
Front wheel travel
|
300 mm (11.8 inches) |
|
Rear suspension
|
WP Monoshock PDS |
|
Rear wheel travel
|
335 mm (13.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc. Floating discs. |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc. Floating disc. |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
104.6 kg (230.6 pounds) |
|
Weight incl. oil, gas, etc
|
104.0 kg (229.3 pounds) |
|
Seat height
|
960 mm (37.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
380 mm (15.0 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Fuel capacity
|
8.20 litres (2.17 US gallons) |
|
Oil capacity
|
1.30 litres (1.37 US quarts) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Electrical
|
12V 8Ah, maintenance free battery. |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 10W-40 |
|
Brake fluid
|
DOT 4 / 5.1 |
|
Coolant
|
1.00 litres (0.26 US gallons) |
|
Spark plugs
|
NGK DCPR 8 E |
|
Idle speed
|
1600 +/- 50 RPM |
|
Sprockets
|
14/52 (front/rear) |
|
Fork tube size
|
48 mm (1.9 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
