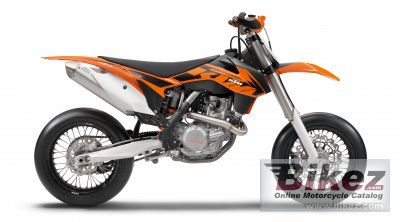

KTM 450 SMR 20132013 KTM 450 SMR specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| It is equipped with the very finest components that money can buy: A new chassis with high-quality WP suspension components and high-tech brakes plus the renowned powerhouse of the 450 SX-F engine turn the 450 SMR into an invincible weapon in every Supermoto race. |
| General information | |
|---|---|
| Model | KTM 450 SMR |
| Year | 2013 |
| Category | Super motard |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 449.3 ccm (27.42 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 97.0 x 60.8 mm (3.8 x 2.4 inches) |
| Fuel system | Injection |
| Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
| Lubrication system | Forced oil lubrication with 3 Eaton pumps |
| Cooling system | Liquid |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc clutch / hydraulically operated |
| Driveline | 14:52. Primary drive: 29:74. |
| Chassis, suspension, brakes and wheels | |
| Frame type | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle) | 26.5° |
| Front suspension | WP Suspension Up Side Down 4860 MXMA CC |
| Front wheel travel | 280 mm (11.0 inches) |
| Rear suspension | WP Suspension 5018 BAVP DCC |
| Rear wheel travel | 310 mm (12.2 inches) |
| Front brakes | Single disc. Floating disc. Four-piston calipers. Radially mounted. |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Floating disc. Single-piston caliper. |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 111.5 kg (245.8 pounds) |
| Seat height | 927 mm (36.5 inches) If adjustable, lowest setting. |
| Ground clearance | 310 mm (12.2 inches) |
| Wheelbase | 1495 mm (58.9 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Color options | Orange/gray/white |
| Starter | Electric |
