| KTM's profilation of this bike |

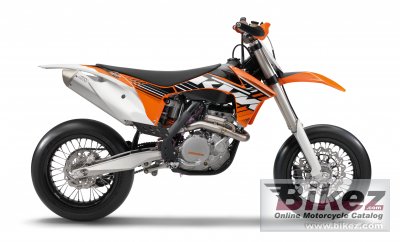

| ´Ready to race´ in its purest form, the 450 SMR provides perfect technology for the racetrack. The SMR has been completely redesigned for the 2012 model year. It is equipped with the very finest components that money can buy: A new chassis with high-quality WP suspension components and high-tech brakes plus the renowned powerhouse of the 450 SX-F engine turn the 450 SMR into an invincible weapon in every Supermoto race. |
|
General information |
|
Model
|
KTM 450 SMR |
|
Year model
|
2012 |
|
Type
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
449.3 ccm (27.42 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
97.0 x 60.8 mm (3.8 x 2.4 inches) |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
|
Lubrication system
|
Forced oil lubrication with 3 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch / hydraulically operated |
|
Driveline
|
14:52. Primary gear ratio 29:74. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Central tube frame made of chrome molybdenum steel tubing |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
WP Suspension Up Side Down 4860 MXMA CC |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
WP Suspension 5018 BAVP DCC |
|
Rear wheel travel
|
210 mm (8.3 inches) |
|
Front brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
111.5 kg (245.8 pounds) |
|
Seat height
|
927 mm (36.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
310 mm (12.2 inches) |
|
Wheelbase
|
1495 mm (58.9 inches) |
|
Fuel capacity
|
8.20 litres (2.17 US gallons) |
|
Other specifications |
|
Color options
|
Black/orange/white |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 KTM 450 SMR discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this KTM bike
|
Racing track capabilities for the 2012 KTM 450 SMR:
 (78.2 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
