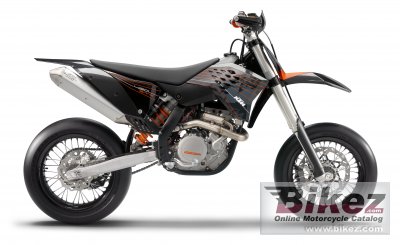

KTM 450 SMR 20102010 KTM 450 SMR specifications, pictures, reviews and rating |
| KTM's profilation of this bike |
| The new 450 SMR is pretty much the hottest standard Supermoto model currently on the market. This thoroughbred racing bike was developed for the KTM factory team according to the motto “Ready to Race”. |
| General information | |
|---|---|
| Model | KTM 450 SMR |
| Year of manufacture | 2010 |
| Type | Super motard |
| Rating | 3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 449.3 ccm (27.42 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 12.5:1 |
| Bore x stroke | 97.0 x 60.8 mm (3.8 x 2.4 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin MX FCR 41 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Kokusan digital |
| Lubrication system | Pressure lubrication with 3 oil pumps |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | APTC slipper clutch, hydraulically operated |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Chromium-Molybdenum central double-cradle-type frame, powder coated |
| Rake (fork angle) | 26.5° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | WP USD 48 mm fork |
| Front wheel travel | 280 mm (11.0 inches) |
| Rear suspension | WP PDS mono shock |
| Rear wheel travel | 310 mm (12.2 inches) |
| Front tire | 125/80-420 |
| Rear tire | 170/55-17 |
| Front brakes | Single disc. Magura four piston, radially bolted caliper |
| Diameter | 310 mm (12.2 inches) |
| Rear brakes | Single disc. Brembo single-piston, floating caliper |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 111.5 kg (245.8 pounds) |
| Seat height | 920 mm (36.2 inches) If adjustable, lowest setting. |
| Ground clearance | 300 mm (11.8 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 8.20 litres (2.17 US gallons) |
| Other specifications | |
| Color options | Gray/black/orange |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 KTM 450 SMR discussion group or the general KTM discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this KTM. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2010 KTM 450 SMR for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this KTM bike | |
Design and look for the 2010 KTM 450 SMR:  (65.2 out of 100)Click here for complete rating. |
|
