| KTM's profilation of this bike |
| The ultra-light racing machine for the S2 Supermoto class. Special Supermoto chassis, High Performance racing brkae up front, with a radial caliper and radial pump and plenty of power that´s transferred to the 5´ rear wheel at the highest speeds. |
|
General information |
|
Motorcycle name
|

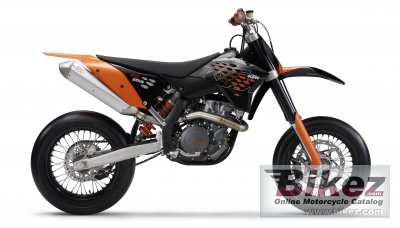

KTM 450 SMR |
|
Year
|
2008 |
|
Category
|
Super motard |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
449.3 ccm (27.42 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Torque
|
95.0 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6500 RPM |
|
Compression
|
12.5:1 |
|
Bore x stroke
|
97.0 x 60.8 mm (3.8 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin MX FCR 41 |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Kokusan digital |
|
Lubrication system
|
Pressure lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
APTC Antihopping, operated hydraulically |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double ground, chrommoly-steel frame, powder-coated |
|
Rake (fork angle)
|
26.5° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
WP USD |
|
Front wheel travel
|
280 mm (11.0 inches) |
|
Rear suspension
|
WP monoshock PDS |
|
Rear wheel travel
|
310 mm (12.2 inches) |
|
Front tire
|
125/80-20 |
|
Rear tire
|
170/55-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
111.5 kg (245.8 pounds) |
|
Seat height
|
855 mm (33.7 inches) If adjustable, lowest setting. |
|
Ground clearance
|
300 mm (11.8 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Fuel capacity
|
8.20 litres (2.17 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
