| KTM's profilation of this bike |
| The ultra-light racing machine for the S2 Supermoto class. Special Supermoto chassis, High Performance racing brkae up front, with a radial caliper and radial pump and plenty of power that´s transferred to the 5´ rear wheel at the highest speeds. Minus the E-Starter Instead, this bike comes with massive power and performance as well as minimum weight. The Brembo 4-piston floating calliper front brake and the 320 disc will out-brake any opposition. The exhaust system with aluminium double muffler makes the 660 SMC ´Ready to Race´ at every traffic light. |
|
General information |
|
Motorcycle name
|

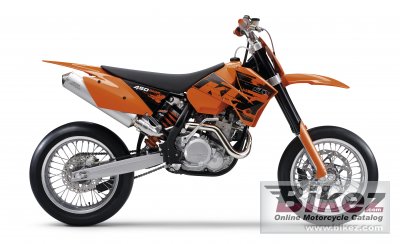

KTM 450 SMR |
|
Year
|
2007 |
|
Category
|
Super motard |
|
Rating
|
3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
449.4 ccm (27.42 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
95.0 x 63.4 mm (3.7 x 2.5 inches) |
|
Fuel system
|
Carburettor. Keihin MX FCR 41 |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
Kokusan digital 4K-3A |
|
Lubrication system
|
Pressure lubrication with 2 eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double ground, chrommoly-steel frame, powder-coated |
|
Trail
|
90 mm (3.5 inches) |
|
Front suspension
|
WP USD Ø 48 mm (1.89´) |
|
Rear suspension
|
WP monoshock PDS |
|
Front tire
|
120/75-17 |
|
Rear tire
|
165/55-17 |
|
Front brakes
|
Single disc. Magura 4-piston, radially fixed caliper, brake disc Ø 310 mm (12.20´) |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Brembo single-piston floating caliper, brake disc Ø 220 mm (8.66´) |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
108.5 kg (239.2 pounds) |
|
Seat height
|
855 mm (33.7 inches) If adjustable, lowest setting. |
|
Ground clearance
|
310 mm (12.2 inches) |
|
Wheelbase
|
1481 mm (58.3 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
